Vibro-CHM.2

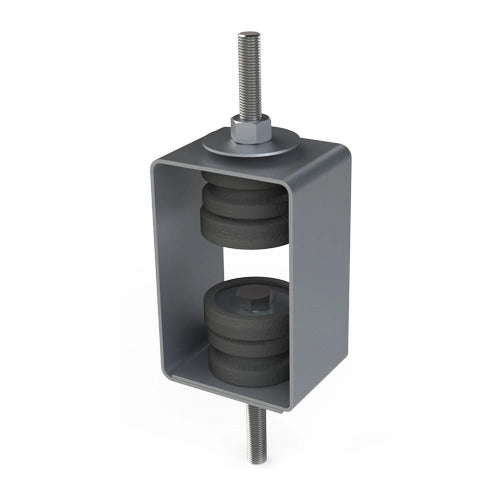

Name: Vibro-CHM.2
Brand: DECIBEL shop
Price: 22.08 EUR
Availability: InStock

Verified Reviews

Vibro-CHM.2 is an anti-vibration suspension hanger designed for floating acoustic ceilings, pipework, ductwork, and lightweight mechanical equipment. Featuring a double Vibro-R resilient isolation system, it provides increased deflection and improved vibration isolation compared with single-element hangers. The dual elastic configuration effectively reduces structure-borne vibration transmission, making it particularly suitable for suspended ceiling systems and building services requiring enhanced acoustic performance.

Key Features

Double Vibro-R resilient isolation system
Increased deflection for improved vibration control
Reduces structure-borne vibration transmission
Suitable for suspended acoustic ceiling systems
Effective for both building services and mechanical equipment
Steel support frame with painted or galvanised finish
Compatible with M8 threaded rods
Available in multiple load ranges

Applications

Floating plasterboard ceilings
Acoustic suspended ceiling systems
Air conditioning ducts
Ventilation ductwork
Pipework carrying liquids
Rotating machinery suspension
Building services installations
Mechanical equipment suspension

Technical Characteristics

Product type: Anti-vibration suspension hanger
Isolation element: Double Vibro-R resilient mounts
Frame material: Painted steel or galvanised steel
Suspension connection: M8 threaded rod compatible (not included)
Static deflection: 8 mm at maximum load
Natural frequency: 7 Hz at maximum load
Load range (Vibro-CHM.2.25): 8–25 daN
Load range (Vibro-CHM.2.50): 20–50 daN

Product Dimensions

Base diameter: 58 x 45 mm
Height: 90 mm

Installation

Install Vibro-CHM.2 hangers at the designated suspension points according to the ceiling layout, equipment arrangement, or services support design.

Secure the hanger to the structural support using suitable anchors and connect the suspended system using appropriately sized M8 threaded rods.

Ensure loads are distributed evenly across all hangers to achieve the designed deflection and vibration isolation performance.

For acoustic ceiling installations, maintain separation between the suspended framework and surrounding walls or structural elements to prevent acoustic bridges.

Delivery

The product is carefully packed and dispatched via selected courier or pallet transport partners, depending on the order size and destination.

We deliver orders straight to your doorstep within 5–10 working days.

Type

Vibro-CHM.2.25 - Max load 25 daN

Vibro-CHM.2.50 - Max load 50 daN
